Produktdetails

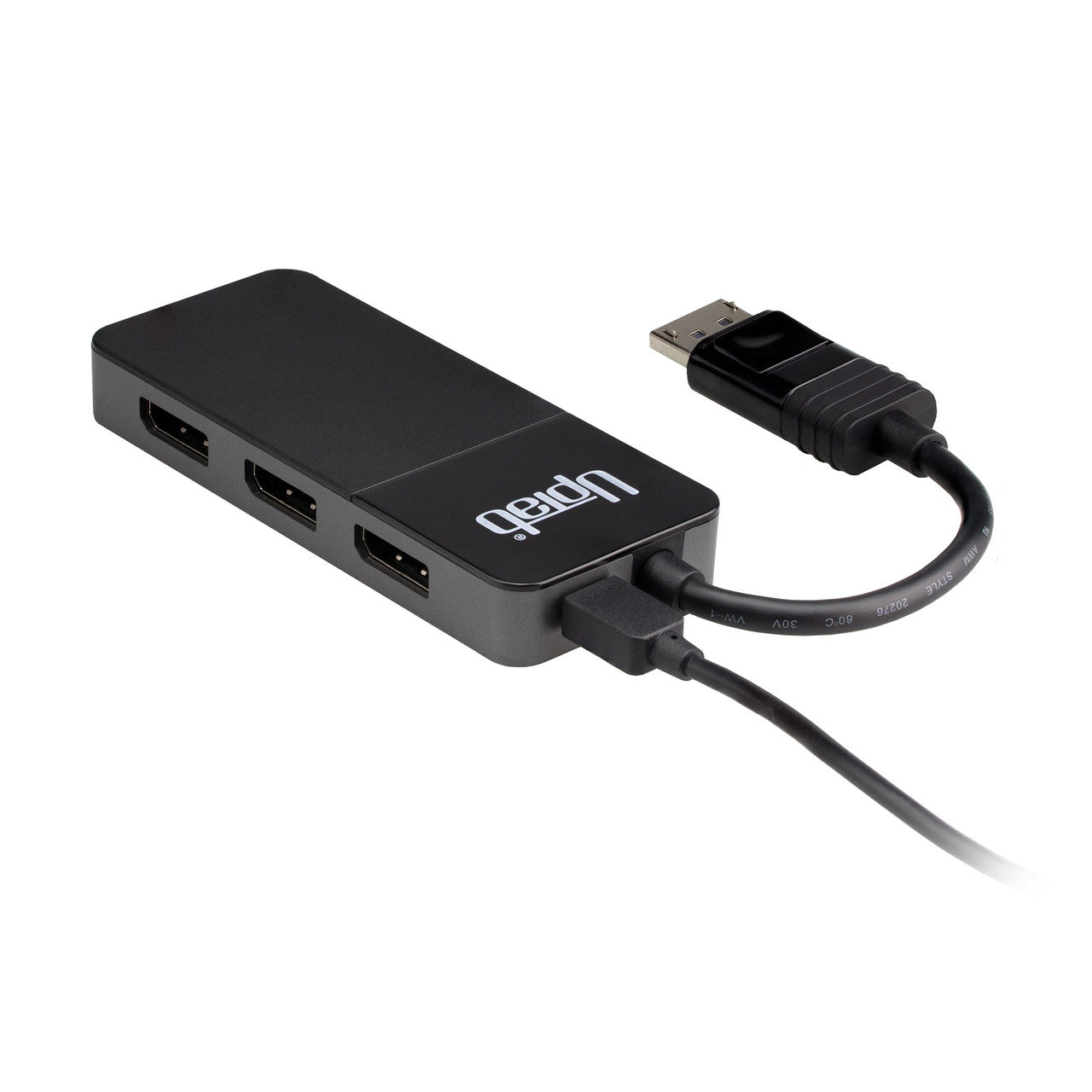

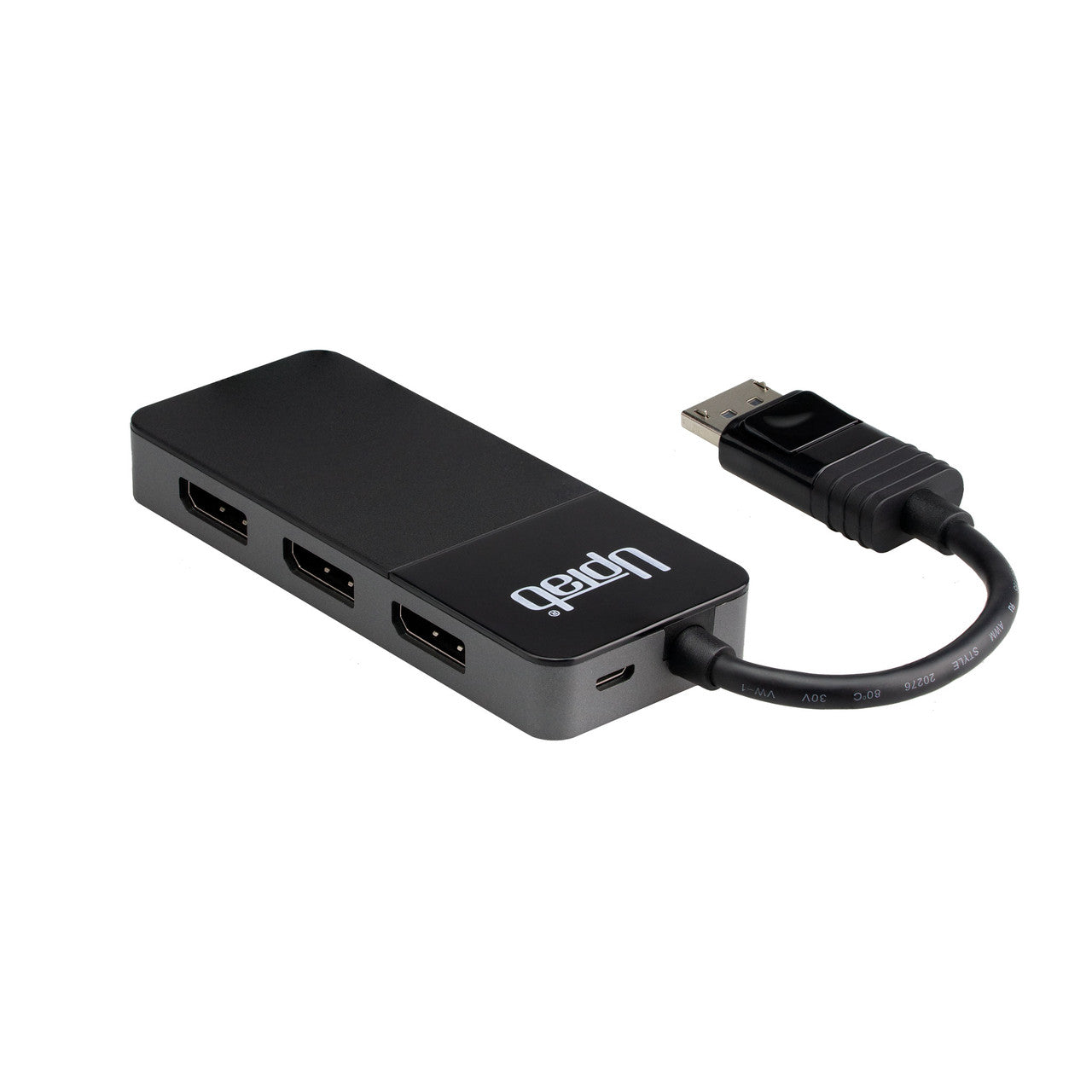

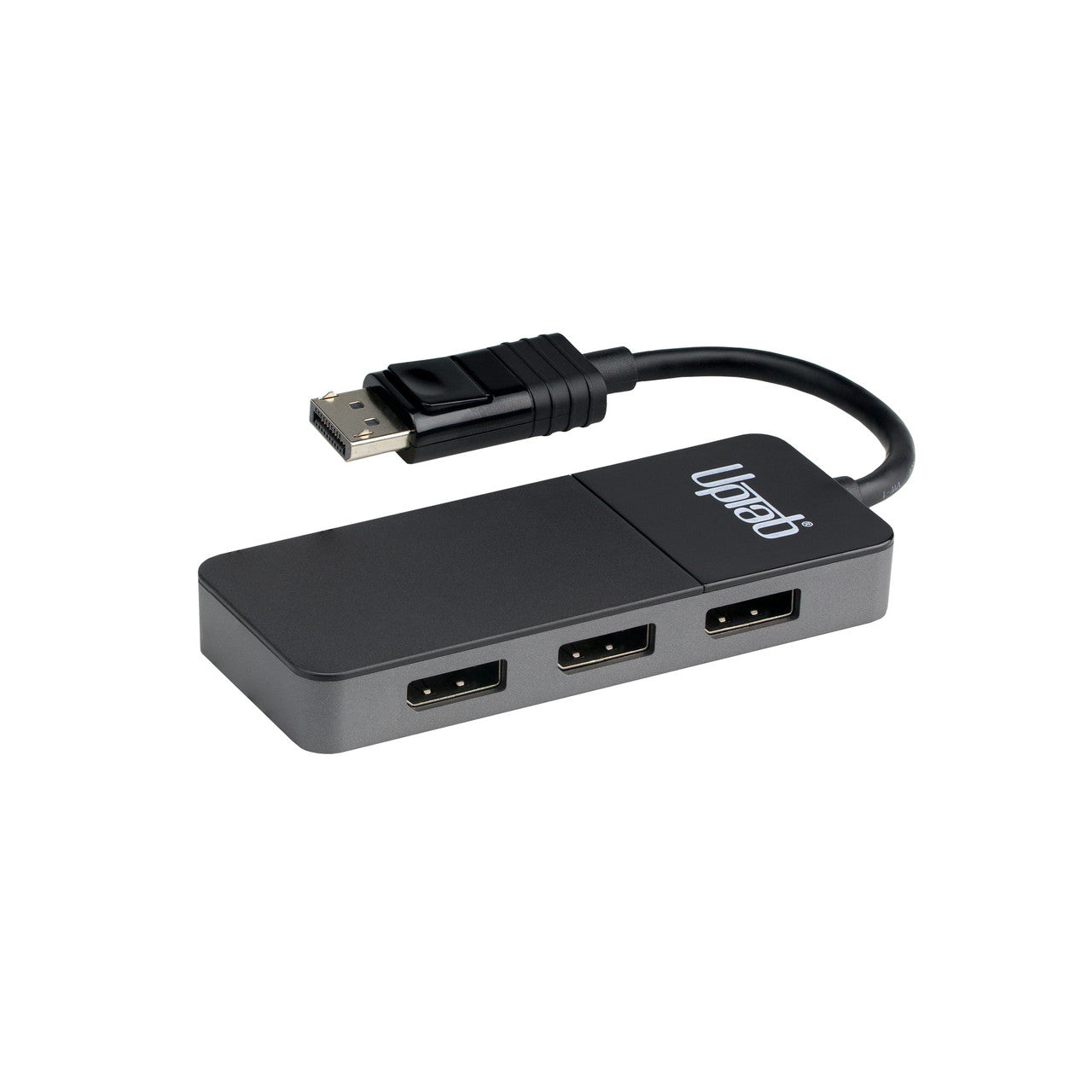

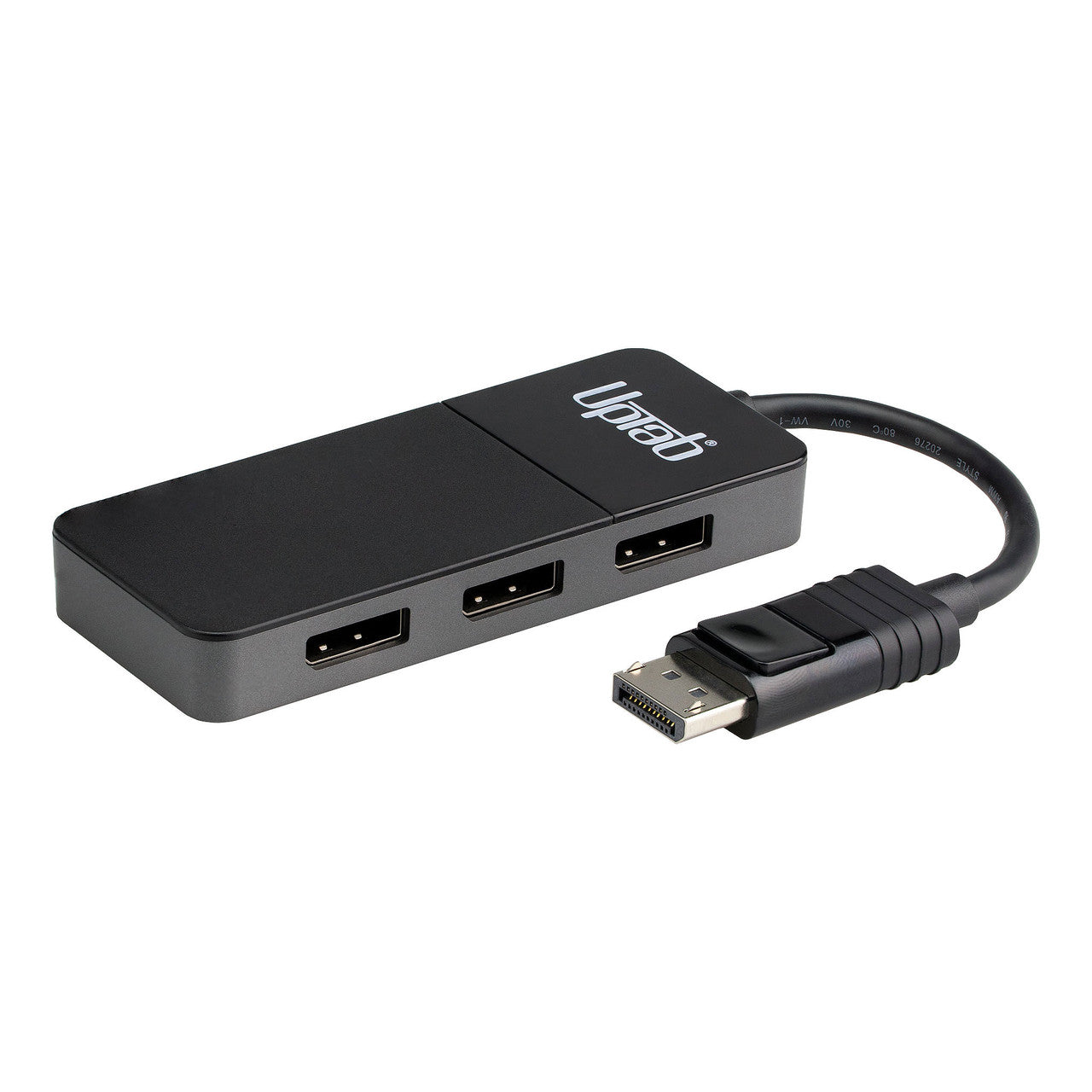

Dieser UPTab DisplayPort 1.4 auf 3 DisplayPort Multi-Stream Transport (MST) Hub ermöglicht drei verschiedene Anzeigemodi auf bis zu drei Monitoren, die an einen einzigen DisplayPort-Ausgang angeschlossen sind. Sie können einen einzelnen Bildschirm mit Auflösungen von bis zu 8K@60Hz anschließen, um den Desktop Ihres Computers zu spiegeln. Fügen Sie einen zweiten Monitor hinzu, und der Hub erweitert das Bild automatisch auf die beiden Bildschirme mit Auflösungen von bis zu 5K@60Hz für jeden Bildschirm. Schließen Sie drei Monitore an, und der Hub passt sich automatisch an, um eine 3x1-„Videowand“ zu erstellen, wobei das einzelne Bild die drei Bildschirme mit Auflösungen von bis zu 4K@60Hz für jeden Monitor überspannt. Dieser Hub ist ideal für Gamer, Videoeditoren, Architekten und alle, die mit Bildern oder Videos in ultrahoher Auflösung arbeiten.

Multi-Stream-Transport-Hub (MST): Ein MST-Hub ermöglicht drei verschiedene Anzeigemodi auf bis zu drei Monitoren, die an einen einzigen DisplayPort-Ausgang angeschlossen sind.

Duplikatmodus: Sie können einen einzelnen Bildschirm mit einer Auflösung von bis zu 8K bei 60 Hz anschließen, um den Desktop Ihres Computers zu spiegeln.

Erweiterter Desktop-Modus: Schließen Sie zwei Monitore an und der Hub erweitert das Bild automatisch auf die beiden Displays mit Auflösungen von bis zu 5K@60Hz für jedes Display.

Videowandmodus: Schließen Sie drei Monitore an, und der Hub passt sich automatisch an, um eine 3x1-„Videowand“ zu erstellen, wobei das einzelne Bild die drei Displays mit Auflösungen von bis zu 4K bei 60 Hz für jeden Monitor überspannt.



UPTab DisplayPort to 3 DisplayPort Splitter Adapter



Spezifikationen:

  • Eingang: DisplayPort 1.4
  • Ausgabe:
    • Einzelner DisplayPort 1.4-Monitor Unterstützt Bildschirmauflösungen bis zu 8K bei 60 Hz Bildrate
    • Dual DisplayPort 1.4-Monitore. Unterstützt Bildschirmauflösungen von bis zu 5K bei einer Bildrate von 60 Hz.
    • Drei DisplayPort 1.4-Monitore. Unterstützt Bildschirmauflösungen bis zu 4K bei einer Bildrate von 60 Hz
  • Unterstützt HDR High Dynamic Range, HDR10, HDR10+ und Dolby Vision
  • Audiounterstützung für bis zu 8 LPCM-Kanäle
  • Micro-USB-Anschluss für externe Stromversorgung (Micro-USB-Kabel im Lieferumfang enthalten)
  • Abmessungen: 4 1/8" x 1 5/8" x 1/2"



UPTab DisplayPort to 1.4 3x DisplayPort Monitors



Lieferumfang:

  • 1 DisplayPort 1.4 auf 3x DisplayPort Adapter
  • 1x USB-auf-Micro-USB-Kabel, 1 m
  • 5 stars: 11 (69%)
  • 4 stars: 1 (6%)
  • 3 stars: 2 (13%)
  • 2 stars: 2 (13%)
  • 1 star: 0 (0%)
m
michael s.
Works great for 3 1440p monitors

I needed something to connect 3 27" 1440p 144Hz monitors that I normally have connected directly to my desktop (2080ti graphics card) to a docking station for my work computer while I'm working from home. The 2080ti supports DisplayPort 1.4 while the docking station/laptop only supports 1.2 (HP Zbook 15 G2) so I wanted something that would work for both. This was the cheapest I could find that supports DP 1.4 and has 3+ ports and so far it's working great.Some caveats that I've found is there are some limitations for both computers. On the laptop I can do two monitors at 1440p @ 60Hz and the third at 1080p @ 60Hz. This is purely a limitation of the computer/docking station though because I can run all 3 at 1440p on the desktop. However on the desktop I can only run them up to 120Hz, and I can't run all of them that high. It seems I can run 1-2 at 100 or 120Hz and the third at 60Hz.I was also having some issues with screens flickering and green/red dots moving around the screens in dark areas, but that was only on the laptop. After blowing out the docking station a little and plugging the connector back in a few times it seems to be working fine. I also wasn't able to use a USB port on the docking station to power it, but using a USB port on the laptop itself, a charging brick, or a USB port on another computer worked without any issues. I suspect this is because of how the USB ports work on my docking station with a keyboard and mouse already connected.Even though I've only been using it for a week or so, I would highly recommend this hub over spending 2-3x as much on a new docking station with 3 DisplayPort connectors or buying a similar 3-port hub locally.

A
Amazon C.
[UPDATE: stopped working] Make sure to update your graphics drivers...

At first it was working terribly, slowing my computer down and preventing it from waking from sleep. Then I updated my graphics card driver and it works just fine :)I'm running 3x 1080p monitors at 60hz with a GTX 1050 ti.-----------------Update: stopped working after 3 months, when I moved my computer to a different room. Apparently it broke from gentle handling, because no settings changed, and I confirmed that the power cable still worked.

A
Anthony P.
Exactly what I needed and the best price I could find

So far so good. Been using about a month and it works as expected

I
Infrequent R.
FX-580 Red Devil + Linux + 2x32-inch = Success

Two Samsung C32H711 32-inch curved monitors running at 2560 x 1440 60Hz on Linux Ubuntu 16.04 LTS with AMD video drivers working perfectly. Preparing to add to 2 additional monitors (similar spec) and this additional DP MST Hub. To install the DP MST hub I just powered down, plugged in its USB power supply into the PC, plugged in the MST hub, powered up and all is well.

P
Phil
Inconsistent

This doesn't always work. Sometimes I can view two monitors sometimes only one. Never can I see all three monitors.

A
Amazon C.
Recommend

Nice one, works perfectly.

A
Alex N.
Device works just as intended. Perfect for my monitor set up

Works great with my computer monitor set up. Simple, easy, gets the job done with no issues as of present.

T
Tabitha73
Works great

This is a must if you have three monitors

K
Kyle
Works great

The product works great. I'm currently running 3 1080p monitors (2x60Hz & 1x144Hz) with absolutely no issues. Thank you.

T
Tong
Works Great!

It works great! I have no problem with it. It uses a usb to mini-usb to power it on. So if it is not working for you, check to make sure its plugged in.

J
John B.
Not what I expected

Splits the signal into 3x so 144 hz divided into 3 is what you get from each plug (48 hz) which is useless if you want your monitors to run at least 60hz which makes this total garbage to me .

M
M. P.
Really does NOT support more than one 4K display at 60Hz

Despite what description indicates - if you have two displays they will each top out at 30Hz.Others have noted the same thing, but it's important to pile on until they correct the description.

V
Velcro
Does what I need with no fuss.

With everything going on I had started to work from home and was sent home with my work computer and one monitor. I decided to use that monitor in addition to my own - which was fine for the work computer but my home computer had one displayport output. I grabbed this hub (after making sure my video card could handle it) and within 10-15 minutes had a working dual monitor system on my home computer as well. It's been several weeks and no issues yet!

A
Alan C.
Worked for me

I changed out to a new desktop computer and the only output for a monitor was a single DisplayPort 1.4 outlet. I wanted to use two monitors in extended mode, and this hub did the trick. I can't say anything about how it works in the long term, but right now it is working perfectly.

P
Phantom_kneo04
Good but I could not getting working using Nvidia Surround

I have triple 1440p 144Hz monitors with RTX 2080. It works as promised. I was able to run all three at max resolution with 144Hz using extended display. I have both left and right monitors connected to the splitter in my case.Also, I use 4th single monitor for productively and playing FPS games. My hope was to have all 4 monitors using DP and to seamlessly switch between the single monitor and the triples. I was able to do that for the most part. I did have several instance where the side monitors would flicker off & on and required a restart.Unfortunately, I could not get Nvidia Surround working using the DP splitter. I play a couple of racing titles require running Nvidia surround. I tried making a custom resolution but it caused my computer to restart unfortunately. I know I have an extreme setup so I that's why I gave it 4 stars. It should probably be fine for just extending/duplicating displays as described.

E
Ed M.
It Works

Works at it should and as expected
